Challenges
The need for intervention first emerged in 2021 when significant leakage was identified within the dam structure. Water was escaping through the north-eastern corner of the reservoir, creating pressure behind the historic stonework and posing a serious risk to the stability of the structure. While temporary measures were introduced to stabilise the dam and mitigate immediate concerns, it became clear that a comprehensive restoration programme was required to provide a permanent solution.
The team needed to address complex structural defects and longstanding water ingress issues while ensuring the character, fabric and heritage value of the site were preserved throughout the programme.
Historic works

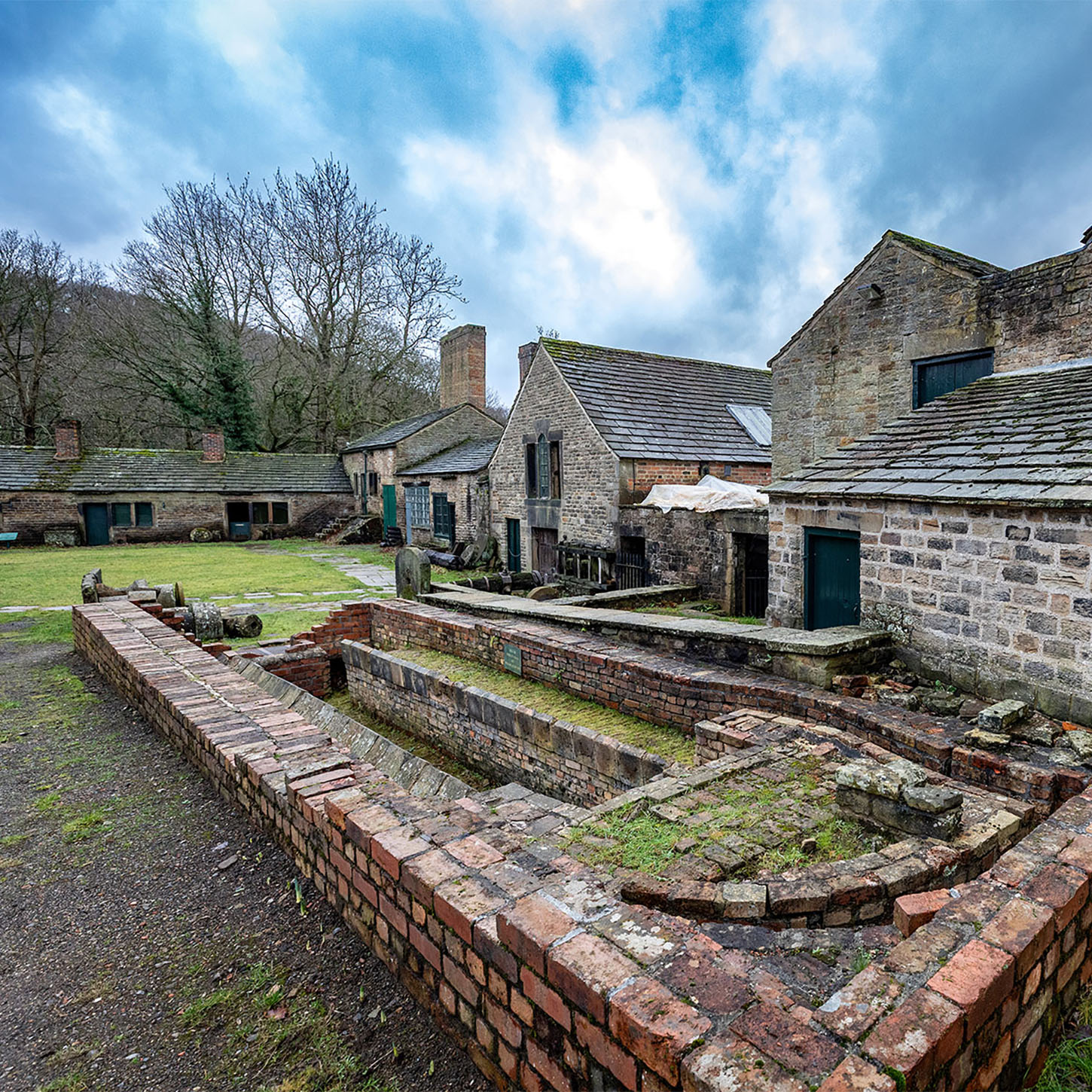

A former agricultural scythe and edge-tool manufacturing plant, Abbeydale Industrial Hamlet operated from the 18th century and is recognised as the most complete example of an integrated water-powered industrial works in existence, meaning every aspect of the project required careful consideration of its historic significance.
Following extensive site investigations and consultation with key stakeholders, Esh Construction developed a restoration strategy that combined modern engineering techniques with traditional conservation methods. The works focused on repairing and strengthening the dam while remaining sympathetic to its original construction.
Historic England approval

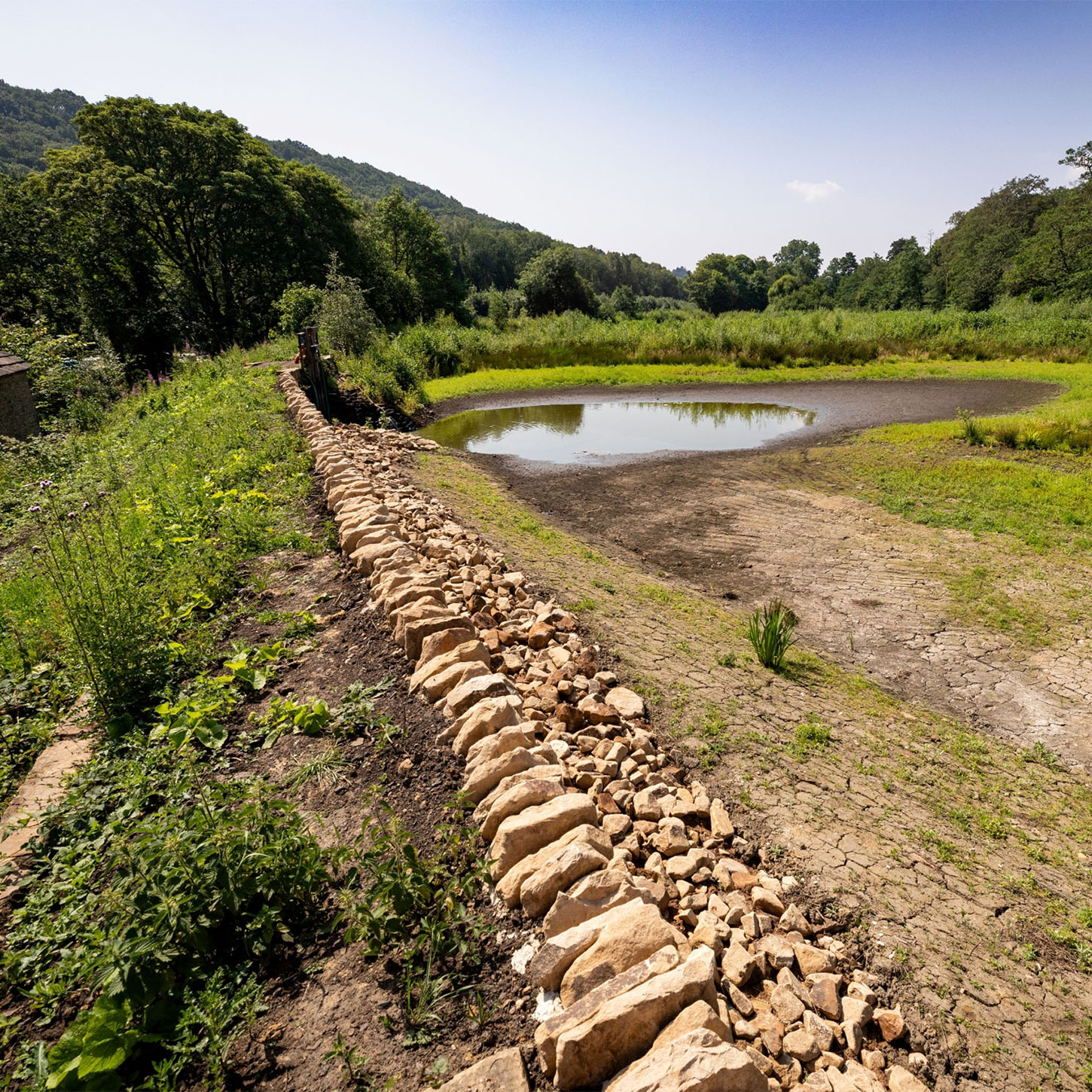

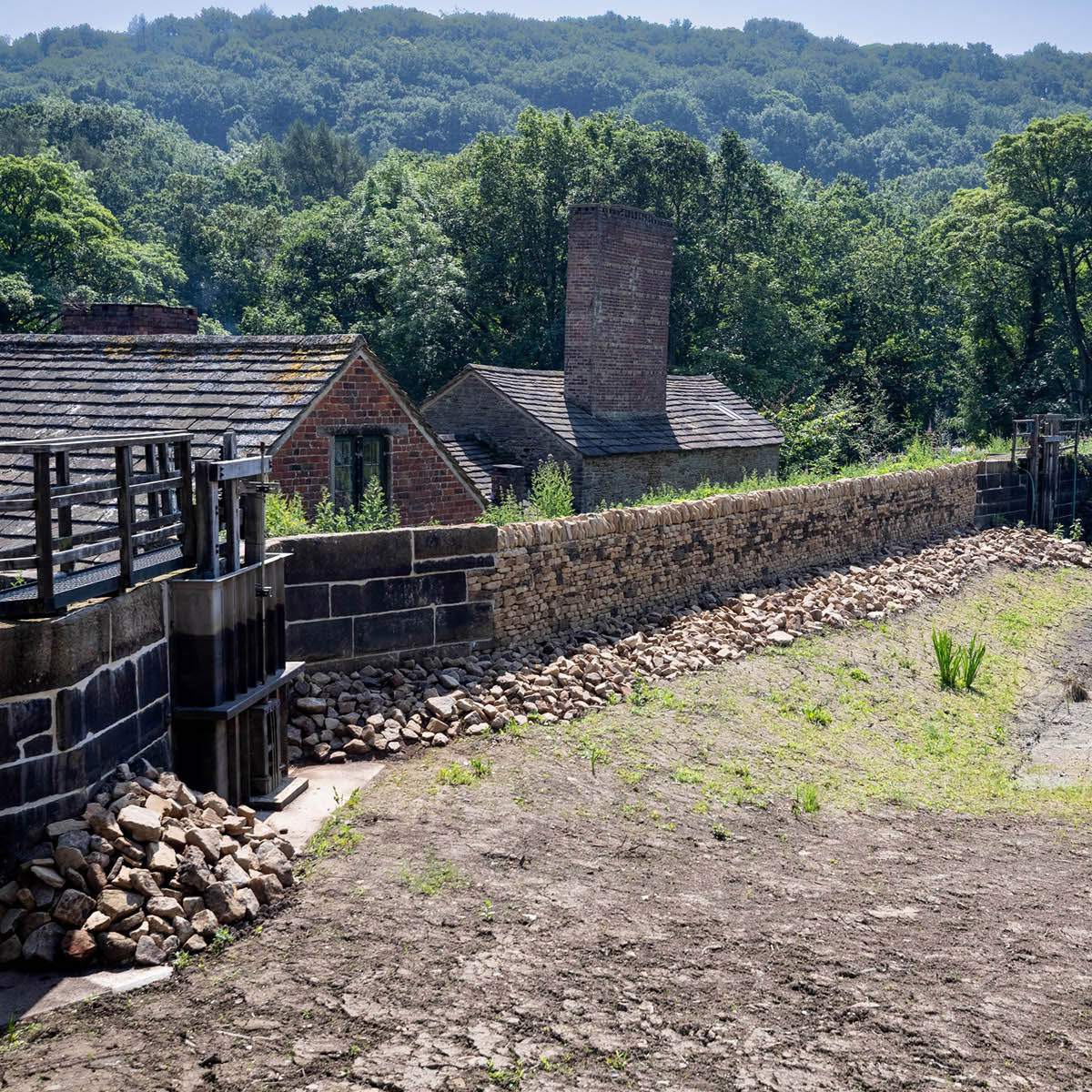

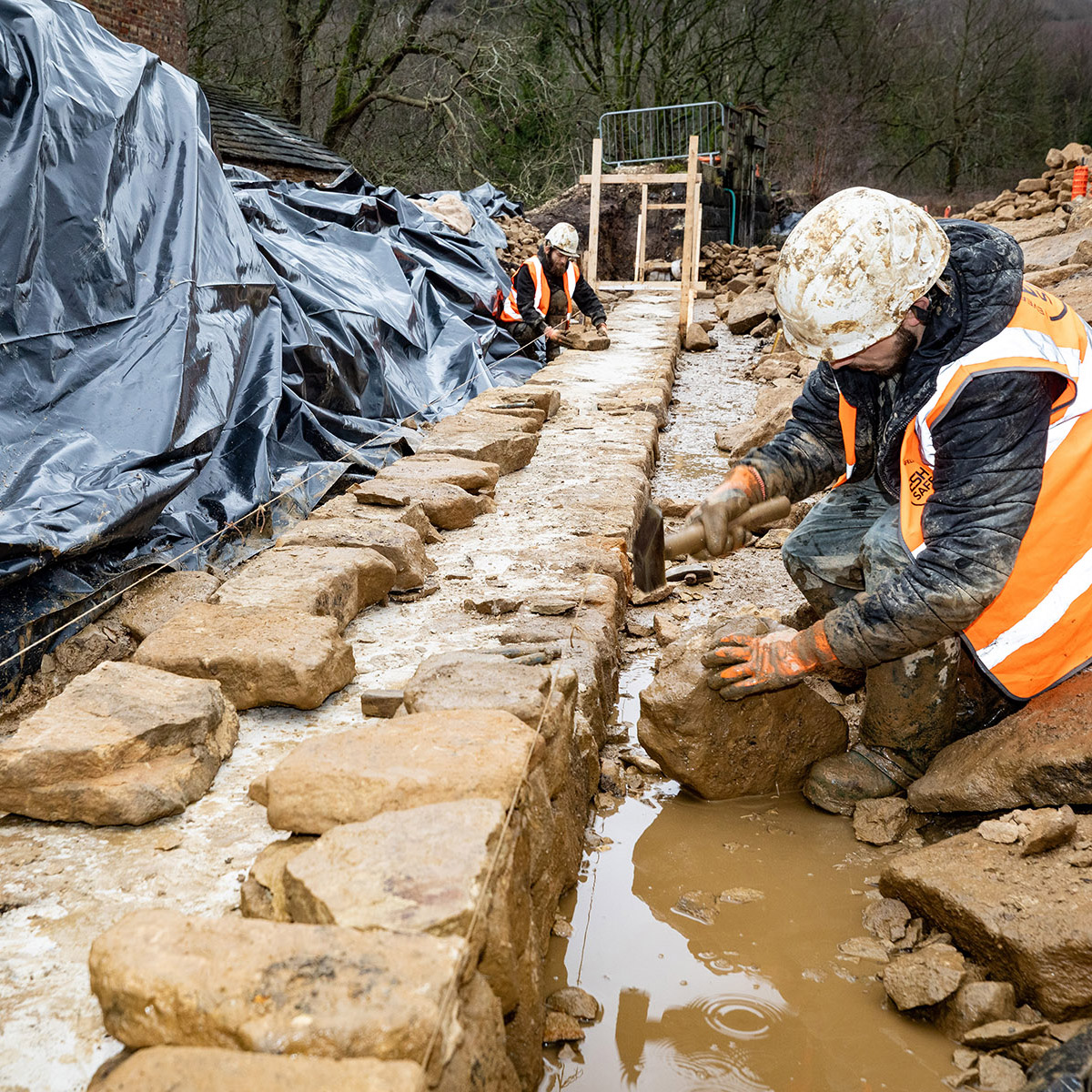

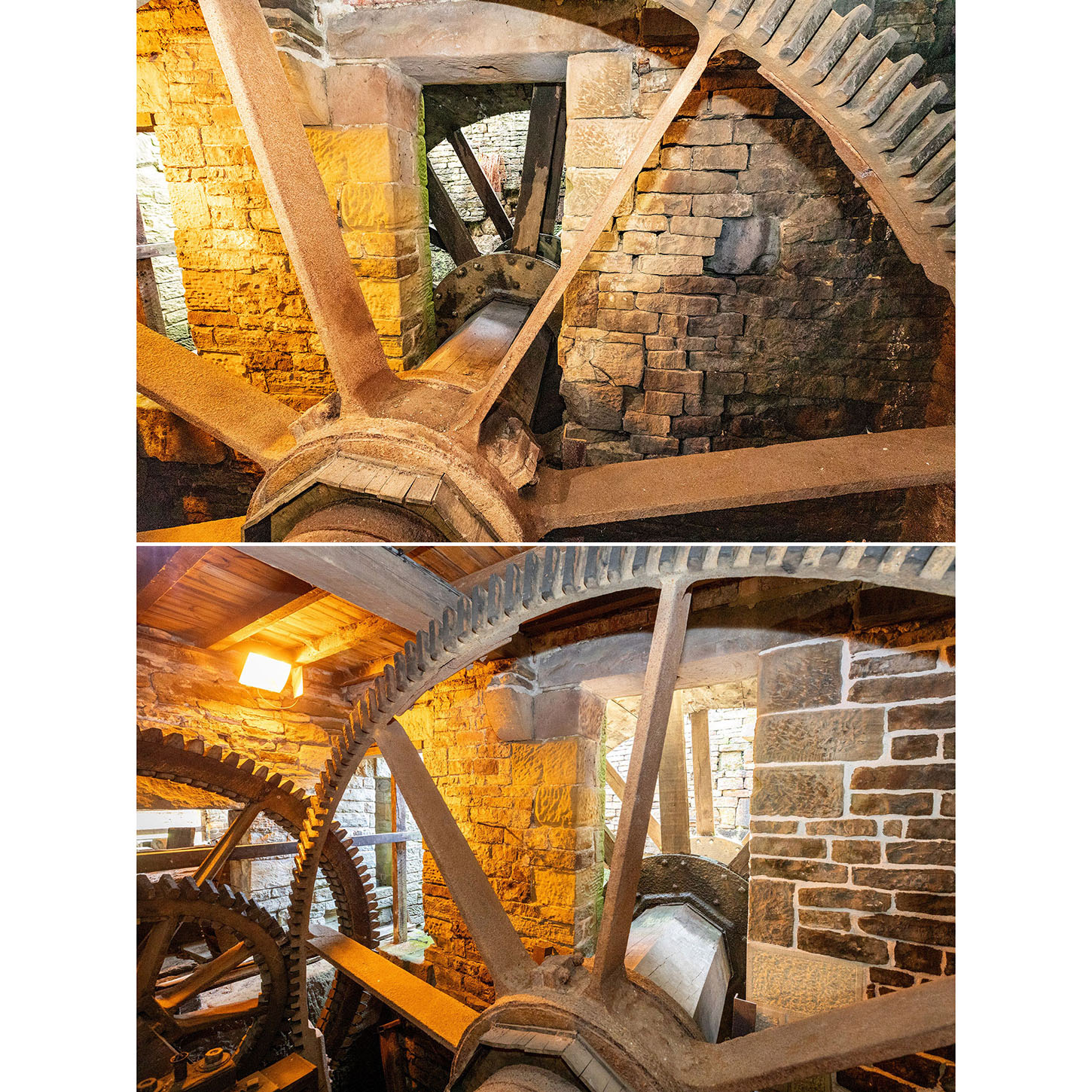

The works involved repairs and underpinning to the Hamlet forge walls, with sections immediately adjacent to historic structures. They also included the installation of a new concrete base and the rebuilding and repointing of sections of the dam wall using traditional lime mortar and the use of puddle clay and a Bentonite membrane. Due to the site’s protected status, all works were undertaken under the guidance and approval of Historic England and in accordance with permits issued by the Environment Agency.
Kim Streets, Chief Executive at Sheffield Museums, said: “Abbeydale Industrial Hamlet is a jewel of Sheffield’s industrial heritage and we’re grateful to both Sheffield City Council and Esh Construction for their careful work to safeguard it for generations to come."
Environmental concerns

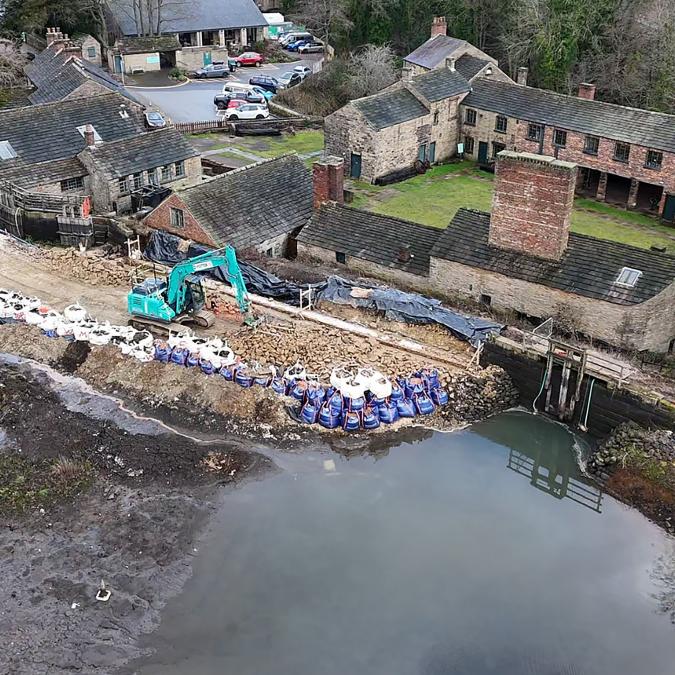

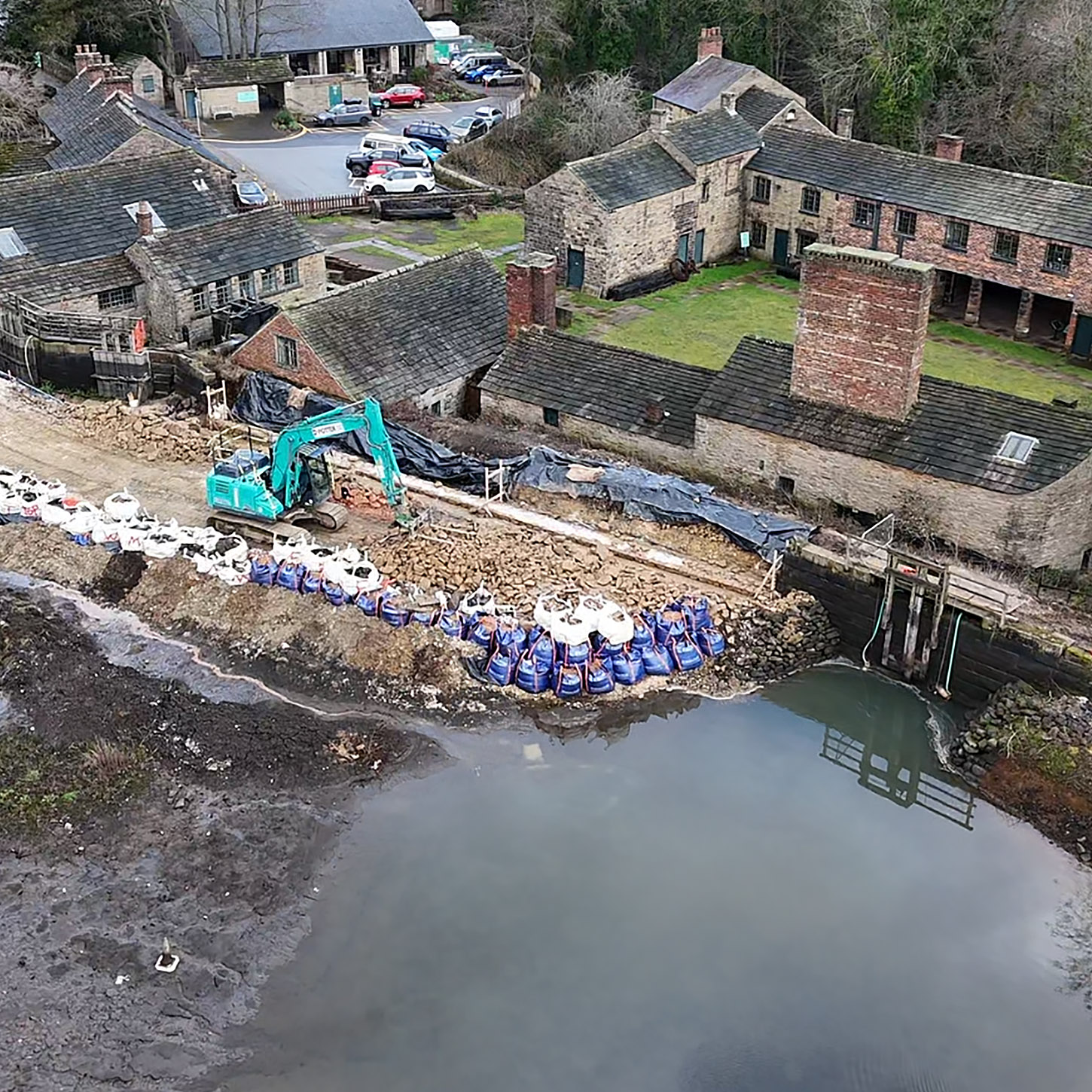

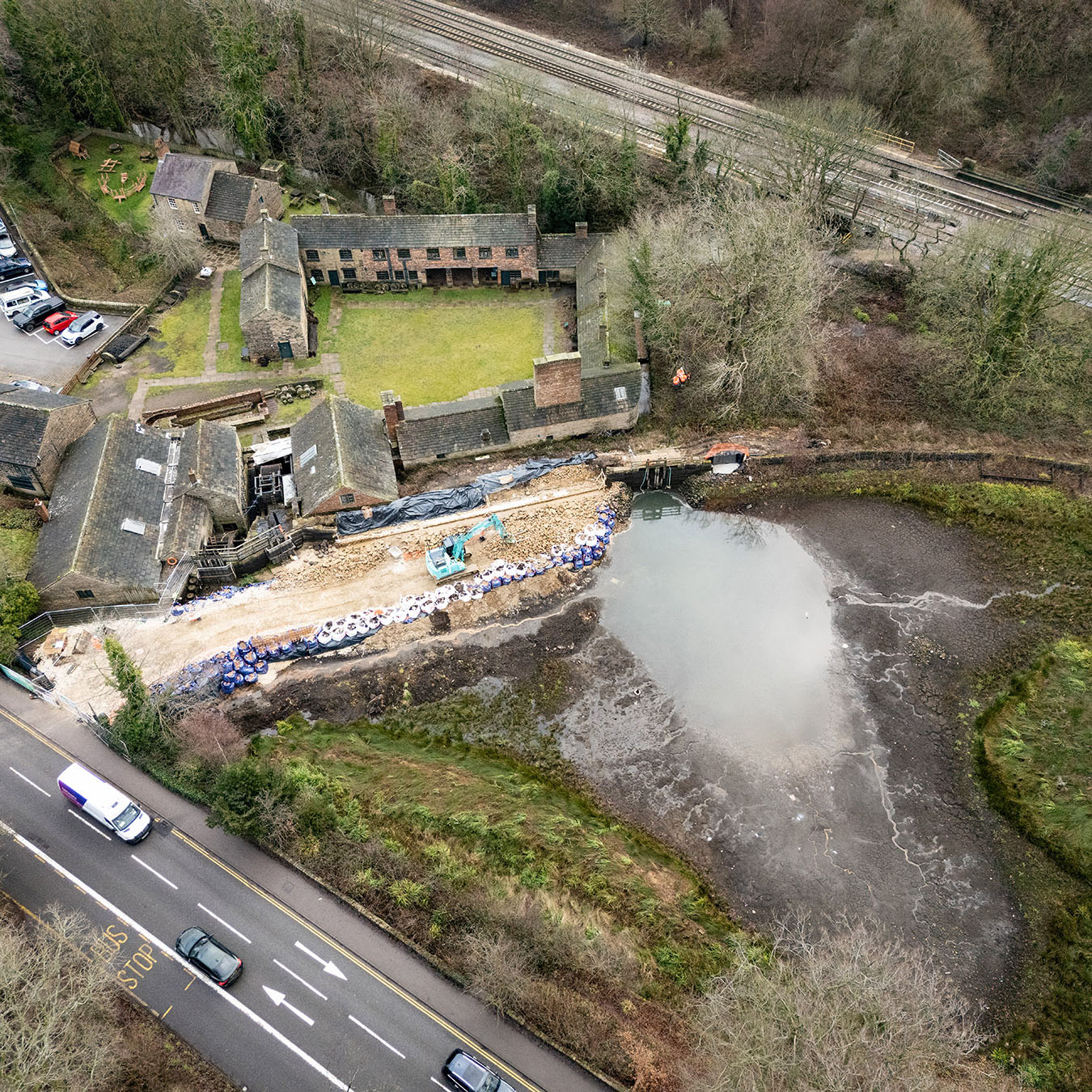

One of the most technically demanding aspects of the scheme was the management of water within the reservoir and the surrounding River Sheaf environment. In order to create a safe and controlled working area, a temporary causeway was constructed across the reservoir, enabling access to critical sections of the structure. The project team implemented strict environmental controls and worked closely with regulatory bodies to ensure all activities complied with the necessary requirements. This necessitated careful planning and ongoing monitoring of water levels to ensure construction activities could proceed safely while protecting local watercourses and the surrounding natural environment.
A collaborative approach
Collaboration was fundamental to the project's success. Sheffield City Council, Sheffield Museums Trust, Historic England, JC Consultancy and specialist supply chain partners worked together throughout the programme, to develop and deliver a solution to meet both engineering and conservation objectives. This partnership approach enabled the team to overcome a range of technical and logistical challenges while maintaining a clear focus on protecting the site's historic status.
Michael Sherrard, Construction Manager at Esh Construction, highlighted the importance of this collaborative approach, saying: "Together, we have delivered a solution that safeguards this important landmark and protects a unique part of Sheffield’s industrial history."
Advantages of using YORcivil3
The YORcivil3 procurement framework was an important asset for the Abbeydale Dam restoration scheme, enabling Sheffield City Council to efficiently contract the specialist civil engineering services needed for the project. The framework requires modern public sector standards, which helped balance modern engineering with traditional conservation.
On a site visit with fellow YORhub Framework Managers, Bradley Thompson and Rhys Hall, Gary Wright, said: “This project demonstrates how YORcivil frameworks can be used to deliver emergency works on complex, historic landmark sites for our clients. Esh Construction have done a fantastic job here at Abbeydale Dam."
Local regeneration

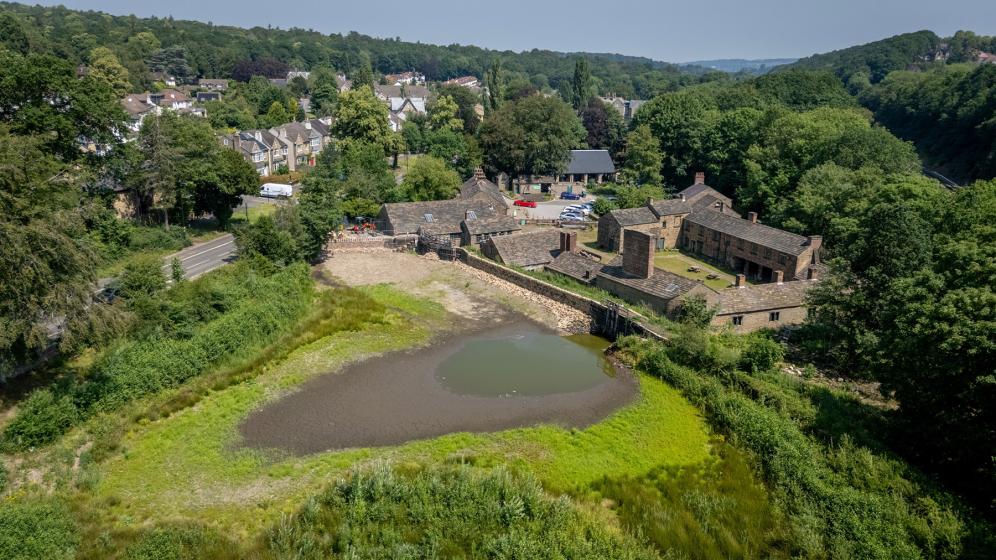

The completion of the dam restoration marks a major milestone in the protection of Abbeydale Industrial Hamlet and its historic water management system. Recently, wider investment has taken place across the site as part of Sheffield Museums' Embrace Abbeydale programme, supported by The National Lottery Heritage Fund. Recent improvements have included the enhancement of visitor facilities, the creation of a new playground and welcome hub, and improved access to the site. Together, these initiatives are helping to attract more visitors and create greater opportunities for people to engage with the past.
Sheffield's heritage secured
Through a combination of specialist engineering, traditional craftsmanship and strong partnership working, the project ensures an important element of Sheffield's industrial story can continue to be understood, appreciated and enjoyed.
Cllr Brian Holmshaw, Chair of the Communities, Parks and Leisure Policy Committee at Sheffield City Council and Sheffield Heritage Champion, said: “This marks an historic moment in the long history of the scythe and steelworks at Abbeydale. Addressing this has saved one of the cornerstones of Britain’s industrial revolution. I’m delighted to see that this project has been completed and the hamlet is open for future generations to visit, learn from and enjoy.”
